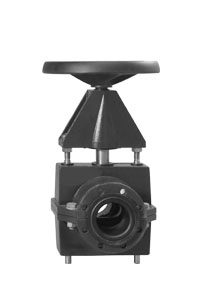

RV | MECHANICAL ACTUATED PINCH VALVES

Type RV – Heavy Duty Mechanical Pinch Valves – Available in Manual Handwheel, Two-sided pneumatic cylinder, Single-acting, Spring return pneumatic cylinder, single-sided pneumatic spring with a pneumatic cylinder, Hydraulic cylinder, and Electro-mechanical actuation.

Cast iron, steel, welded steel or welded stainless steel Pinch Valves from 1” – 47” diameters [25 mm – 1200 mm]

RV Series Pinch Valves are reliable and heavy duty pinch valves:

    • Sleeves are available in 10 different grades:
      • natural rubber
      • EPDM
      • EPDM food quality
      • Nitrile
      • Nitrile food quality
      • Butyl
      • Neoprene
      • Hypalon
      • Viton
      • Silicone
    • Maximum 1 bar, 6 bar, 10 bar, 16 bar, 25 bar and 40 bar operational pressures depending on size.

Advantages:

    1. Guarantee closure with air and power loss using spring return cylinders.
    2. Achieve accurate partial closure using 3 position sensors.
Valve Sizes
Inch [mm]
Flanged Ends Actuation Type Max Recommended Line Pressure
½” Inch [15 mm] DIN 15 Handwheel or Cylinder 75 PSI
¾” Inch [20 mm] DIN 20 Handwheel or Cylinder 75 PSI
1” Inch [25 mm] DIN 25 Handwheel or Cylinder 75 PSI
1.25” Inch [32 mm] DIN 32 Handwheel or Cylinder 75 PSI
1.5” Inch [40 mm] DIN 40 Handwheel or Cylinder 75 PSI
2” Inch [50 mm] DIN 50 Handwheel or Cylinder 75 PSI
2.5” Inch [65 mm] DIN 65 Handwheel or Cylinder 75 PSI
3” Inch [80 mm] DIN 80 Handwheel or Cylinder 75 PSI
4” Inch [100 mm] DIN 100 Handwheel or Cylinder 75 PSI
5” Inch [125 mm] DIN 125 Handwheel or Cylinder 45 – 75 PSI
6” Inch [150 mm] DIN 150 Handwheel or Cylinder 45 – 75 PSI
8” Inch [200 mm] DIN 200 Handwheel or Cylinder 45 – 75 PSI
10” Inch [250 mm] DIN 250 Handwheel or Cylinder 30 PSI
