Air Operated Pinch Valves
Engineered Flow Control for Abrasive and Slurry Applications
Executive Summary
Air operated pinch valves deliver reliable, full-bore flow control for abrasive slurries, powders, granules, and corrosive media. By using compressed air to actuate a reinforced elastomer sleeve, these valves eliminate internal mechanical components from the process stream, significantly reducing wear and maintenance.
AKO air operated pinch valves are engineered for demanding industrial environments where conventional valve technologies fail due to abrasion, scaling, or clogging.

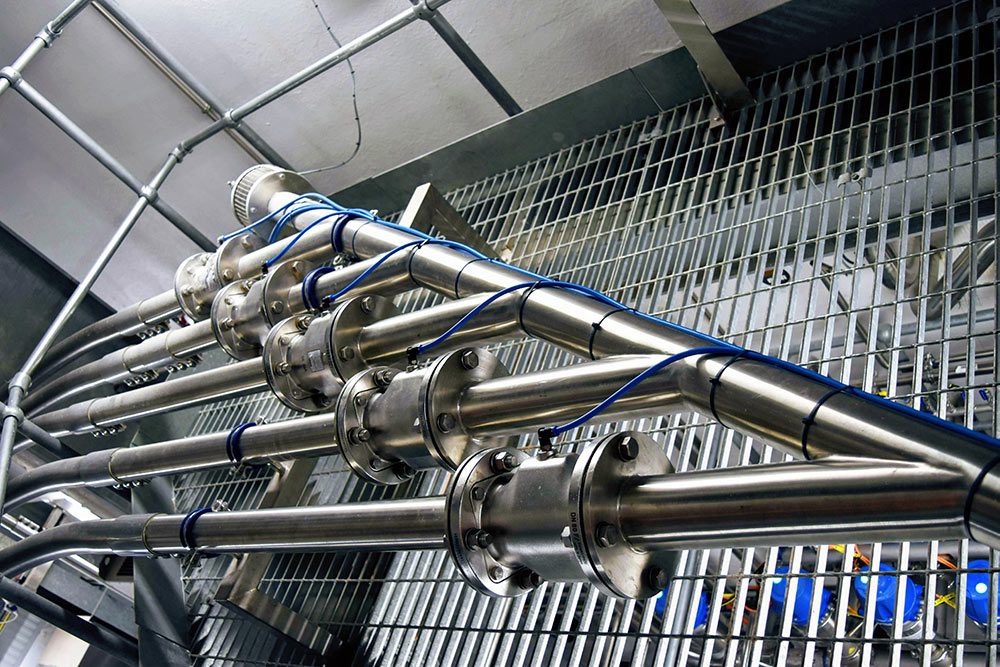

Air Actuated Pinch Valves offer complete flow regulation and the highest possible ease-of-use using compressed air to open and close an elastic sleeve. AKO makes 4 lines of air actuated pinch valves: the VMP, VMC, VF, and VT series.
The compressed air inside each air actuated pinch valve forces the elastic sleeve shut, either completely or partially. Flow regulation can be adjusted to exact percentages allowing for specific dosing in process systems. Air actuated pinch valves are low maintenance, extremely reliable, and an ideal flow control solution for all types of applications; such as abrasive materials, slurries, liquids, powders, and granules.
What Is an Air Operated Pinch Valve?
An air operated pinch valve is a pneumatically actuated valve that controls flow by compressing a flexible elastomer sleeve. When compressed air is applied to the valve body, the sleeve collapses to shut off flow. When air pressure is released, the sleeve returns to its open, full-bore position.
Direct Definition: An air operated pinch valve is a full-port pneumatic valve that regulates flow by externally compressing a flexible sleeve using air pressure.

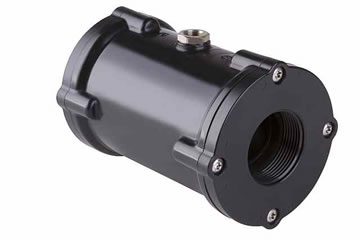

VMP
Plastic Pinch Valves from 3/8” – 2” diameters [10mm – 50mm]. VMP Series Pinch Valves are a reliable and economic valve for a range of industrial applications.

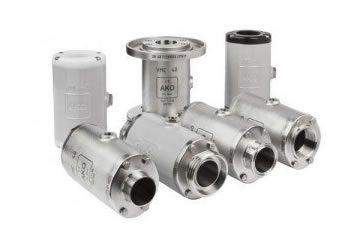

VMC
Aluminum and Stainless Steel Pinch Valves with near endless connection options. From 3/8” – 4” diameters [10 mm – 100 mm].

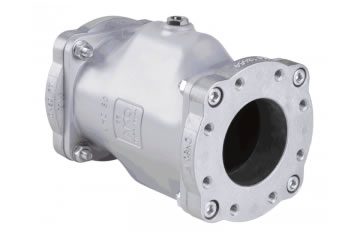

VT
Aluminum and Stainless Steel Pinch Valves designed for semi-trailer silo unloading and Bulk Silo Overfill Protection.

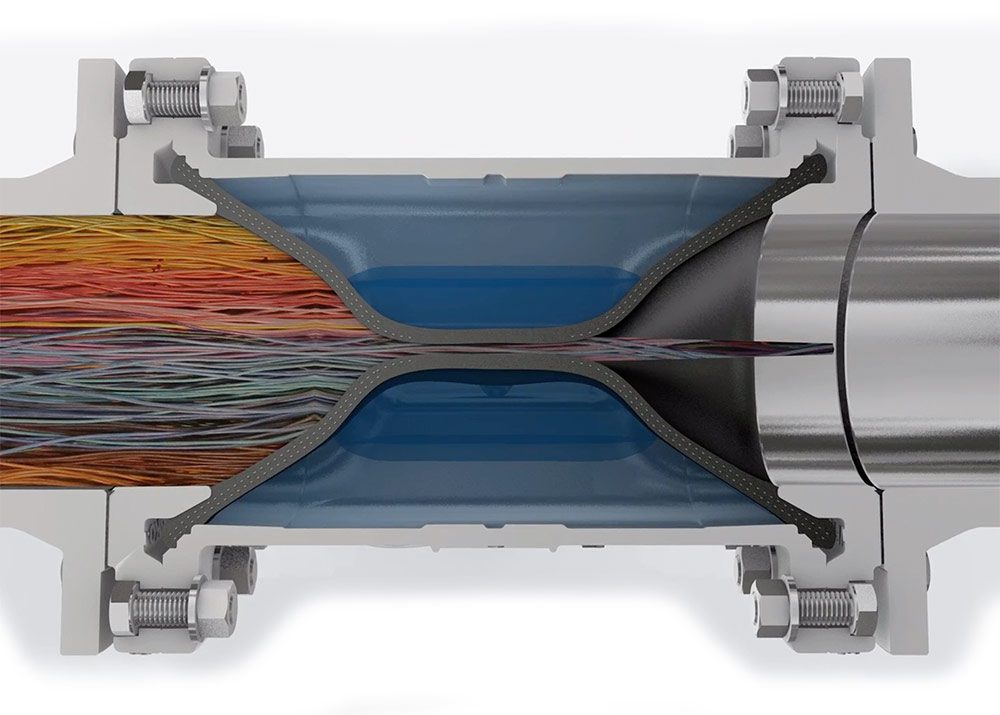

How Air Actuated Pinch Valves Work

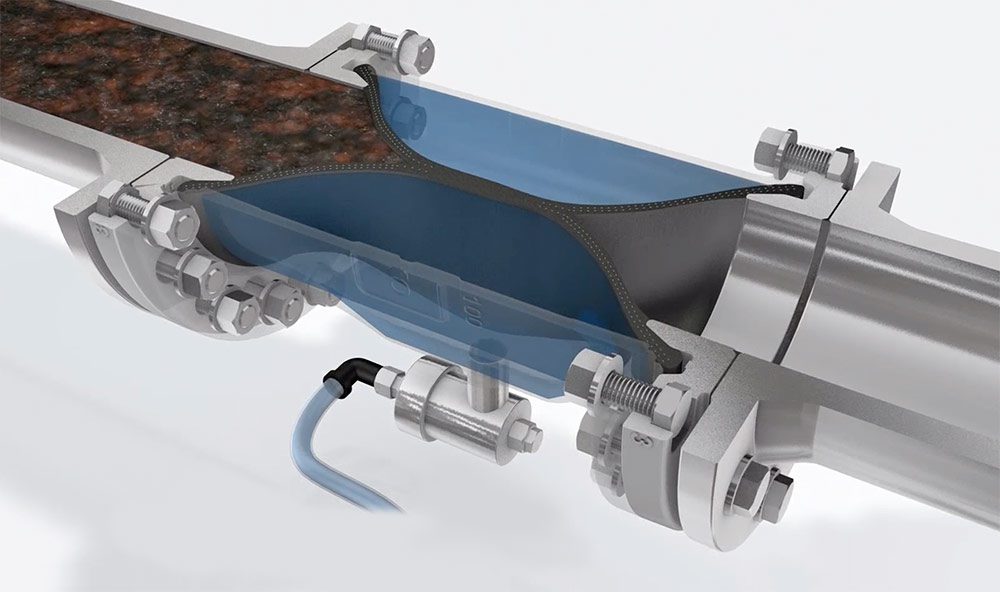

The design of this valve is simple: it’s a hermetically sealed cylindrical or elliptical shaped “body” with a rubber sleeve inside of it. With an air actuator, compressed air flows inside the inner tube, which in turn forces the sleeve to expand and constrict passage through the valve. The rubber sleeve is highly elastic and robust; completely stopping flow when engaged—or using a proportional pressure regulator, can regulate flow to down to 70%, 50%, 30%, 20% etc of flow. When resumption of free flow is desired, the air actuator releases the compressed air, creating normal atmospheric pressure inside the body and allowing the sleeve to retract for free flow.
Air Actuated Pinch Valves Provide Excellent Value Because They Are:
- Small in size, fitting into most process systems.
- Robust, lasting a long time and requiring infrequent sleeve replacement.
- Efficient energy consumption, using only minimal compressed air.
- Complete, full-stoppage of product flow. Or partial flow regulation, using a proportional pressure regulator, if desired.
- Virtually zero frictional resistance when open.
Lowest Total Cost of Owning an AKO Air Actuated Pinch Valve
Referring to any maintenance of an air actuated pinch valve as frequent would be a misnomer. Over the lifetime of ownership, occasional replacement of the pinch valve sleeve must be done. This occurs when the elasticity or integrity of the rubber is compromised, either by age, heat, or abrasion. Replacing the sleeves is rapid (with all parts at hand–not more than a handful of minutes) and requires no special skill or proprietary tools. Sleeves are affordable; and combined with such minimal maintenance time, total cost of ownership (TCO) is low.
The Special Design of AKO’s Sleeves
Not all pinch valve sleeves are created equally with regards to durability and composition. While other manufacturers may build quality pinch valves, the chemical composition of the rubber is proprietary and refined only for AKO. The trade secret composition of AKO’s rubber, reinforced with an elastic fabric-like mesh yields an ultra-long lasting and abrasive resistant sleeve. The long service-life contributes to a lower total cost of ownership than competing valves. AKO also offers 10 different grades of elasticity in their sleeves. The different grades offer the best life-cycle value depending on the frequency of opening and closing, temperature, abrasion, and installation particulars. Your Basecamp Sales Engineer will be knowledgeable on choosing the right sleeve.
Key Design Characteristics
1. Full Bore, No Obstruction
The valve provides 100% full port flow. There are no cavities, seats, or crevices where solids can accumulate.
2. Media Isolation
Only the elastomer sleeve and minimal pipe connection contacts the process media. This isolates:
- Valve body
- Pneumatic chamber
- Actuation components
This design dramatically increases service life in aggressive environments.
3. Uniform Sleeve Compression
Air pressure compresses the sleeve evenly around its circumference, ensuring consistent shut-off performance and minimizing uneven wear.
4. Abrasion Resistance
Sleeve materials are selected based on application requirements:
- Natural rubber for abrasive slurries
- EPDM for chemical resistance
- NBR for oil-containing media
- FDA-compliant materials for hygienic applications
Why Use Air Operated Pinch Valves?
Air operated pinch valves outperform traditional valve technologies in applications involving:
- High solids content
- Abrasive mineral slurries
- Fibrous media
- Corrosive process fluids
- Pneumatic conveying systems
Operational Benefits
| Feature | Operational Impact |
|---|---|
| Full-port design | Eliminates clogging and pressure drop |
| Minimal moving parts | Low maintenance |
| Bubble-tight shut-off | Prevents leakage |
| Pneumatic actuation | Suitable for automation and hazardous areas |
Compared with technologies like diaphragm valves, pinch valves perform significantly better in abrasive slurry environments.
Typical Industrial Applications
Air operated pinch valves are widely used in:
Mining & Mineral Processing
Control of tailings, slurry transport lines, and flotation circuits.
Wastewater Treatment
Sludge handling, lime slurry dosing, and chemical injection.
Chemical Processing
Handling of corrosive suspensions and abrasive mixtures.
Pneumatic Conveying
Isolation and dosing of powders and bulk solids.
Ceramics & Pigment Production
Flow control of highly abrasive suspensions.
Many of these use cases are explained further in how pinch valves are used in industrial systems.
Engineering Selection Considerations
Proper valve selection depends on:
Sleeve Material Compatibility
Match elastomer composition to:
- Chemical composition
- Temperature range
- Abrasion level
- Pressure rating
Operating Pressure
Ensure sufficient compressed air supply to fully close against line pressure.
Valve Size
Select based on:
- Required flow rate
- Pipe diameter
- Solids concentration
Installation Orientation
Air operated pinch valves can be installed horizontally or vertically without affecting performance.
Air Operated vs. Mechanically Actuated Pinch Valves
| Parameter | Air Operated | Mechanical |
|---|---|---|
| Actuation | Pneumatic | Manual or mechanical |
| Automation | Fully compatible | Limited |
| Closing force control | Adjustable via air pressure | Fixed mechanical force |
| Ideal for | Automated industrial systems | Manual isolation |
For more about manual systems, see mechanical pinch valves.
For automated slurry handling systems, pneumatic actuation provides superior control and repeatability.
Frequently Asked Questions
Integration Within a Complete Flow Control System
For optimized performance, air operated pinch valves are commonly paired with:
- Solenoid valves for pneumatic control
- Position feedback sensors
- Automated control panels
- Pressure regulators
They integrate seamlessly into PLC-controlled industrial processes.
Conclusion
Air operated pinch valves provide reliable, maintenance-efficient flow control for abrasive slurries, corrosive fluids, and bulk solids. Their simple pneumatic actuation, full-bore design, and complete media isolation make them the preferred solution where traditional valves fail.
For engineered guidance on selecting the correct air operated pinch valve for your application, contact AKO technical specialists to review your operating parameters and process conditions.
