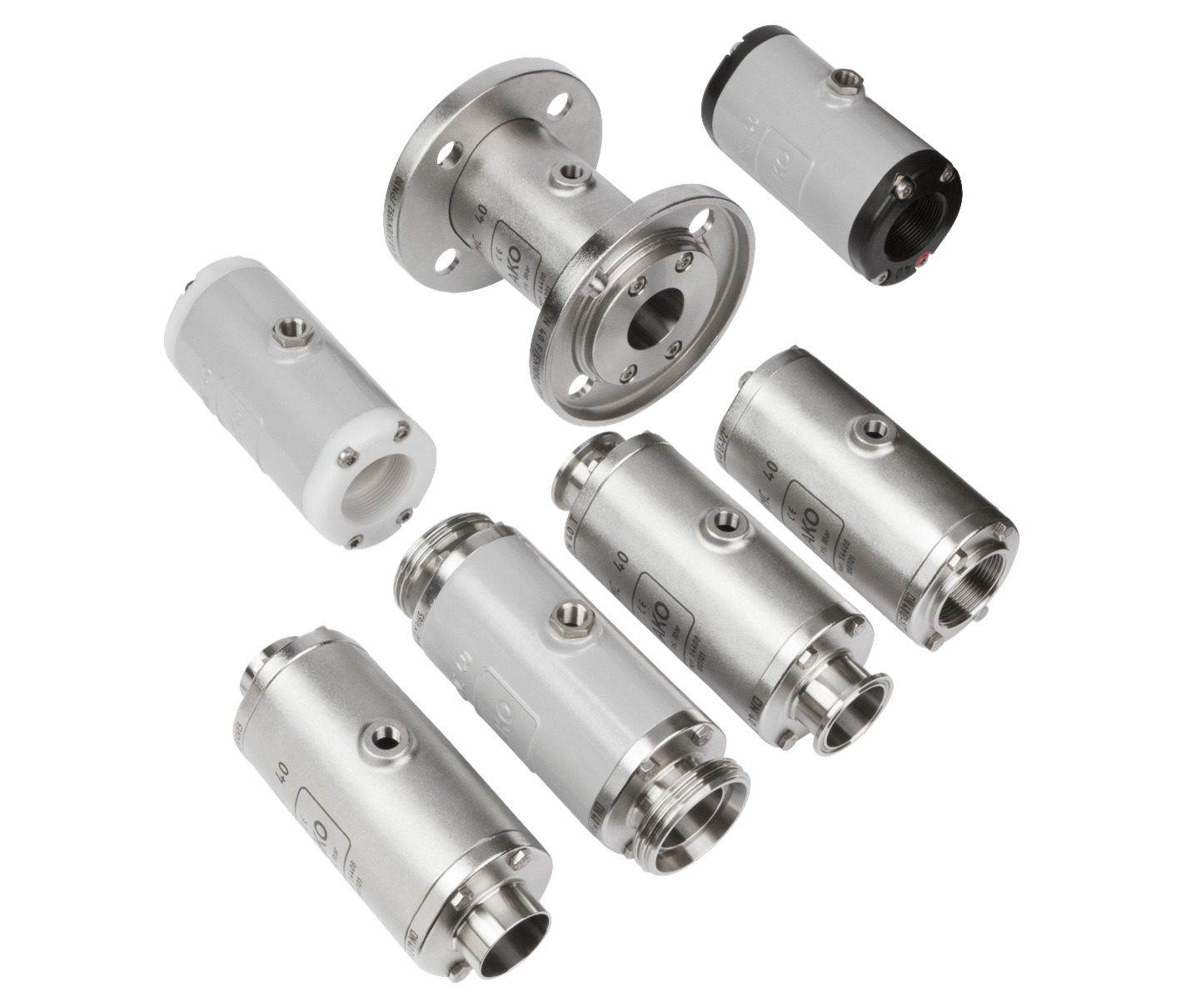

VMC ALUMINUM AN STAINLESS STEEL AIR PINCH VALVES

Aluminum and Stainless Steel Pinch Valves with near endless connection options. From 3/8” – 4” diameters [10 mm – 100 mm].

The VMC Series Pinch Valve is the most configurable pinch valve worldwide. With a range of body materials, sleeve materials, and connections to meet almost any industrial or sanitary valve application.

Advantages:

- VMC Pinch Valves are modular in construction and have a sealed shutoff and full bore opening when opened. The sleeves do not impede product flow and come in a range of sleeve options for abrasive materials, strong acids and bases, sanitary applications and even high temperature applications.
- Various Valve Connections: ANSI Flanged, DIN Flanged, Sanitary Tri-Clamp, NPT threaded or BSPP, Weld-on ends and Threaded Spigot.
- Pinch valve sleeves (liners) can be easily replaced. See step-by-step instructions.

VMC Pinch Valves are constructed from 3 body material options:

- Plastic FDA Approved White or Industrial Black or Conductive for XP
- Powder Coated Aluminum Industrial Valve Applications
- Electropolished Stainless Steel for Sanitary and Corrosive Valve Applications

Sleeve Options for VMC Valves:

- Natural Rubber (Anti-Abrasive or Food Quality)
- Neoprene
- Viton
- Silicon
- Nitrile
- Conductive materials
- Hypalon
- Butyl
- and more…

VMC Valves by Size and Connection Type

Valve Sizes Inch [mm]	Flanged Ends ANSI 150# or DIN	Threaded Ends NPT or BSPP (G)*	Other Connections**	Max Line Pressure
3/8 Inch [10 mm]	No	Plastic or SS	TC, Weld, Spigot	90 PSI
1/2 Inch [15 mm]	No	Plastic or SS	TC, Weld, Spigot	90 PSI
3/4 Inch [20 mm]	No	Plastic or SS	TC, Weld, Spigot	90 PSI
1 Inch [25 mm]	No	Plastic or SS	TC, Weld, Spigot	90 PSI
1-1/4 Inch [32 mm]	No	Plastic or SS	TC, Weld, Spigot	90 PSI
1-1/2 Inch [40 mm]	ANSI or DIN	Plastic or SS	TC, Weld, Spigot	70 PSI
2” Inch [50 mm]	ANSI or DIN	Plastic or SS	TC, Weld, Spigot	90 PSI
2.5 Inch [65 mm]	ANSI or DIN	Stainless Steel	TC, Weld, Spigot	90 PSI
3 Inch [80 mm]	ANSI or DIN	Stainless Steel	TC, Weld, Spigot	90 PSI
3 Inch [80 mm]	ANSI or DIN	Stainless Steel	TC, Weld, Spigot	90 PSI

*Note BSPP (British Standard Parallel Pipe) is designated as G thread
** Tri-Clamp (TC) or Sanitary, Weld On Ends (Weld) and Threaded Spigot (Spigot), all in ss
