OV | MECHANICAL ACTUATED PINCH VALVES
Type OV – Mechanical Pinch Valves – Hand Crank and Air Cylinder Actuation
Aluminum Pinch Valves from ½” – 10” diameters [15 mm – 250 mm]
OV Series Pinch Valves are reliable and lightweight Aluminum pinch valves:

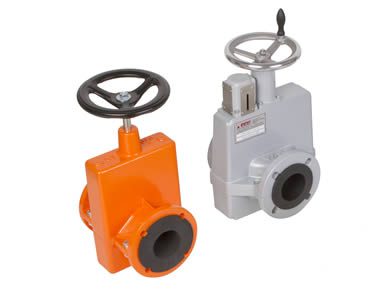

- Manual Handwheel Pinch Valves
- Type M [3/8” – 10” Dia.] – Hand Wheel and Aluminum Body
- Type VZ [1” – 12” Dia.] – Hand Wheel and Cast Iron Body

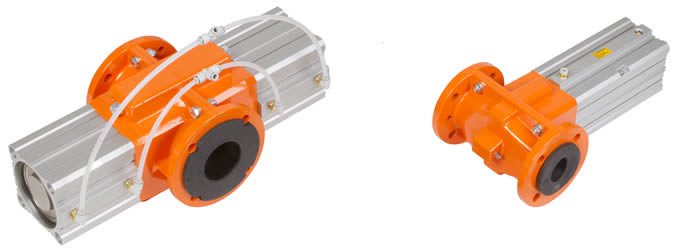

- Air Operated Pinch Valves – Type P and PA
- Type PA [½” – 2” Dia.] – Single Cylinder, Spring Return
- Type PA2 [2.5” – 8” Dia.] – Double Cylinder, Spring Return
- Type P [½” – 2” Dia.] – Single Cylinder, Double Acting
- Type P2 [2.5” – 10” Dia.] – Double Cylinder, Double Acting
- Manual Handwheel Pinch Valves
Advantages:
- Guarantee closure with air and power loss using spring return cylinders.
- Achieve accurate partial closure using 3 position sensors.
- Lightweight aluminum construction.
|
Valve Sizes Inch [mm] |
Flanged Ends | Actuation Type | Max Recommended Line Pressure |
|---|---|---|---|
| ½” Inch [15 mm] | DIN 15 | Handwheel or Cylinder | 75 PSI |
| ¾” Inch [20 mm] | DIN 20 | Handwheel or Cylinder | 75 PSI |
| 1” Inch [25 mm] | DIN 25 | Handwheel or Cylinder | 75 PSI |
| 1.25” Inch [32 mm] | DIN 32 | Handwheel or Cylinder | 75 PSI |
| 1.5” Inch [40 mm] | DIN 40 | Handwheel or Cylinder | 75 PSI |
| 2” Inch [50 mm] | DIN 50 | Handwheel or Cylinder | 75 PSI |
| 2.5” Inch [65 mm] | DIN 65 | Handwheel or Cylinder | 75 PSI |
| 3” Inch [80 mm] | DIN 80 | Handwheel or Cylinder | 75 PSI |
| 4” Inch [100 mm] | DIN 100 | Handwheel or Cylinder | 75 PSI |
| 5” Inch [125 mm] | DIN 125 | Handwheel or Cylinder | 45 – 75 PSI |
| 6” Inch [150 mm] | DIN 150 | Handwheel or Cylinder | 45 – 75 PSI |
| 8” Inch [200 mm] | DIN 200 | Handwheel or Cylinder | 45 – 75 PSI |
| 10” Inch [250 mm] | DIN 250 | Handwheel or Cylinder | 30 PSI |
